How to Calculate RF: A Comprehensive Guide
Calculating RF, or radio frequency, is a fundamental aspect of understanding and working with electromagnetic waves. Whether you're a radio engineer, a telecommunications specialist, or simply curious about the technology behind wireless communication, this guide will provide you with a comprehensive understanding of RF calculations.

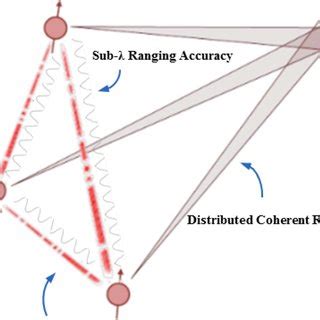

1. Grasping the Concept of RF
Radio frequency (RF) refers to the range of electromagnetic waves that fall between 3 kilohertz (kHz) and 300 gigahertz (GHz). These waves have the ability to propagate through the air, making them useful for various applications, including wireless communication, radar, and navigation.

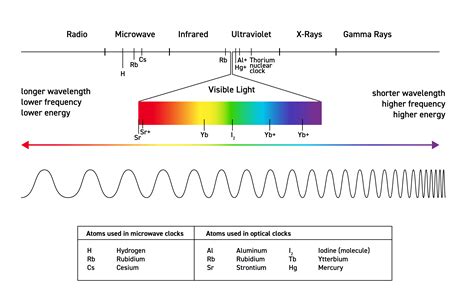

2. Frequency Spectrum and Its Divisions
The RF spectrum is typically divided into several bands, each with its own designated frequency range and applications. These bands include:
• Extremely Low Frequency (ELF): 3 Hz - 3 kHz • Very Low Frequency (VLF): 3 kHz - 30 kHz • Low Frequency (LF): 30 kHz - 300 kHz • Medium Frequency (MF): 300 kHz - 3 MHz • High Frequency (HF): 3 MHz - 30 MHz • Very High Frequency (VHF): 30 MHz - 300 MHz • Ultra High Frequency (UHF): 300 MHz - 3 GHz • Super High Frequency (SHF): 3 GHz - 30 GHz • Extremely High Frequency (EHF): 30 GHz - 300 GHz
3. Significance of RF Calculations
RF calculations play a crucial role in various aspects of wireless communication and electronics. They are essential for:
• Frequency Allocation: Determining the appropriate frequency bands for different applications to minimize interference and ensure efficient spectrum utilization. • Antenna Design: Calculating the dimensions and properties of antennas to achieve optimal performance and directivity. • Power Level Determination: Establishing the appropriate power levels for transmitters to ensure reliable signal transmission and reception. • Interference Analysis: Evaluating potential sources of interference and devising strategies to mitigate their effects. • Propagation Modeling: Predicting the behavior of RF signals as they travel through various mediums, considering factors like terrain, buildings, and atmospheric conditions.
4. Key RF Calculation Formulas
The following formulas are commonly used in RF calculations:
• Frequency: f = c / λ where:
- f is the frequency in hertz (Hz)
- c is the speed of light in meters per second (m/s)
- λ is the wavelength in meters (m)
• Wavelength: λ = c / f where:
- λ is the wavelength in meters (m)
- c is the speed of light in meters per second (m/s)
- f is the frequency in hertz (Hz)
• Power Density: S = P / A where:
- S is the power density in watts per square meter (W/m²)
- P is the power in watts (W)
- A is the area in square meters (m²)
• Received Power: Pr = Pt * Gt * Gr * λ² / (4πd²) where:
- Pr is the received power in watts (W)
- Pt is the transmitted power in watts (W)
- Gt is the gain of the transmitting antenna
- Gr is the gain of the receiving antenna
- λ is the wavelength in meters (m)
- d is the distance between the antennas in meters (m)

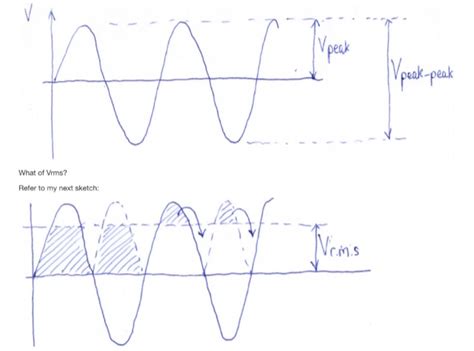

5. RF Power Measurement Techniques
RF power measurement is crucial for ensuring compliance with regulatory limits and optimizing system performance. Common methods include:
• Direct Power Measurement: Using a power meter to directly measure the power output of a transmitter or the power received by an antenna. • Indirect Power Measurement: Estimating power levels based on measurements of other parameters, such as voltage, current, or field strength. • Spectrum Analysis: Analyzing the power spectral density of a signal to determine its power distribution across different frequencies.

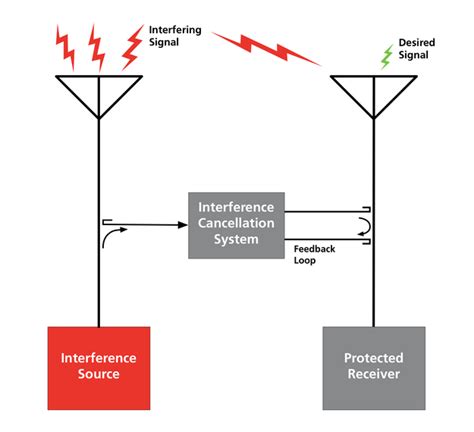

6. RF Interference Mitigation Strategies
Minimizing RF interference is essential for ensuring reliable communication and system performance. Common strategies include:
• Frequency Planning: Allocating frequency bands and channels carefully to minimize overlap and reduce the risk of interference. • Power Control: Adjusting the power levels of transmitters to minimize the potential for interference with other systems. • Antenna Design and Placement: Using directional antennas and optimizing antenna placement to reduce signal leakage and improve directivity. • Shielding and Filtering: Employing shielding materials and filters to block unwanted signals and minimize interference.

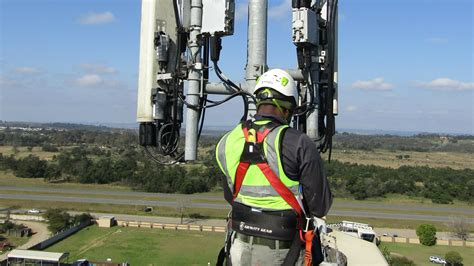

7. RF Safety Considerations
Understanding the potential health effects of RF exposure is important for ensuring public safety and compliance with regulations. Key considerations include:
• Exposure Limits: Regulatory agencies establish exposure limits for RF radiation to protect the public from potential harm. • Safe Distance Guidelines: Determining the minimum safe distance from RF sources to minimize exposure levels. • RF Shielding: Utilizing shielding materials and techniques to reduce RF exposure in specific areas.

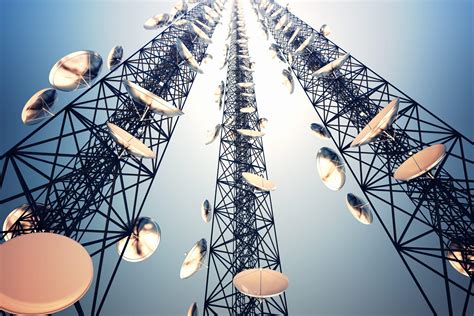

8. Applications of RF Technology
RF technology finds widespread applications across various industries and disciplines, including:
• Wireless Communication: Cellular networks, Wi-Fi, Bluetooth, and other wireless technologies utilize RF waves for data transmission and communication. • Radar Systems: RF signals are used in radar systems to detect and track objects, measure distances,
